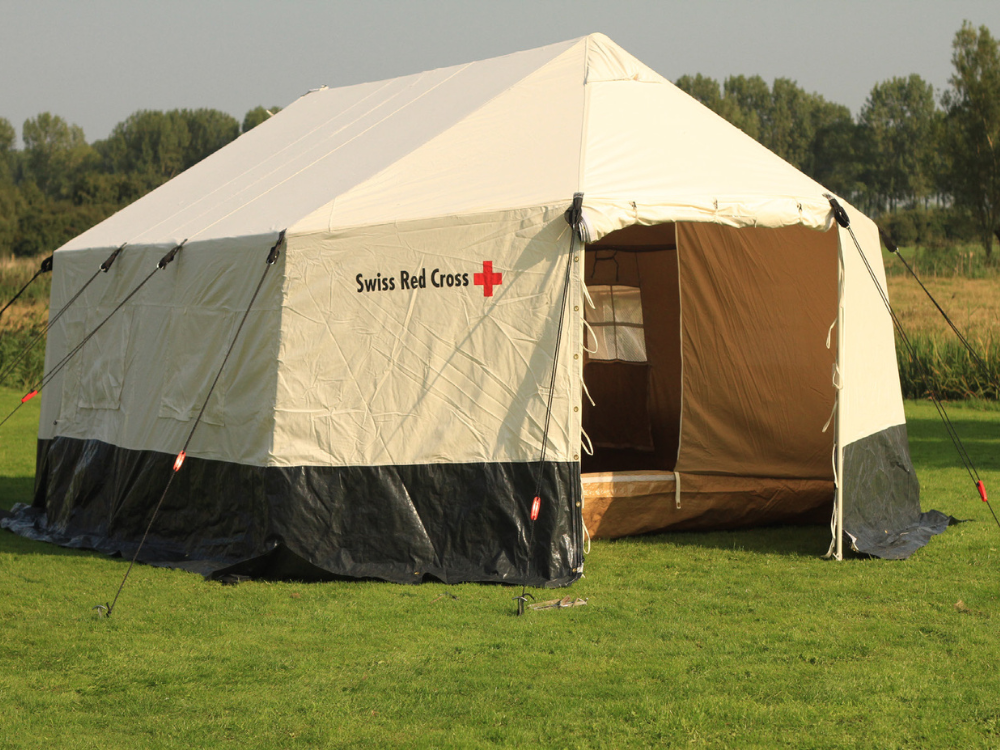

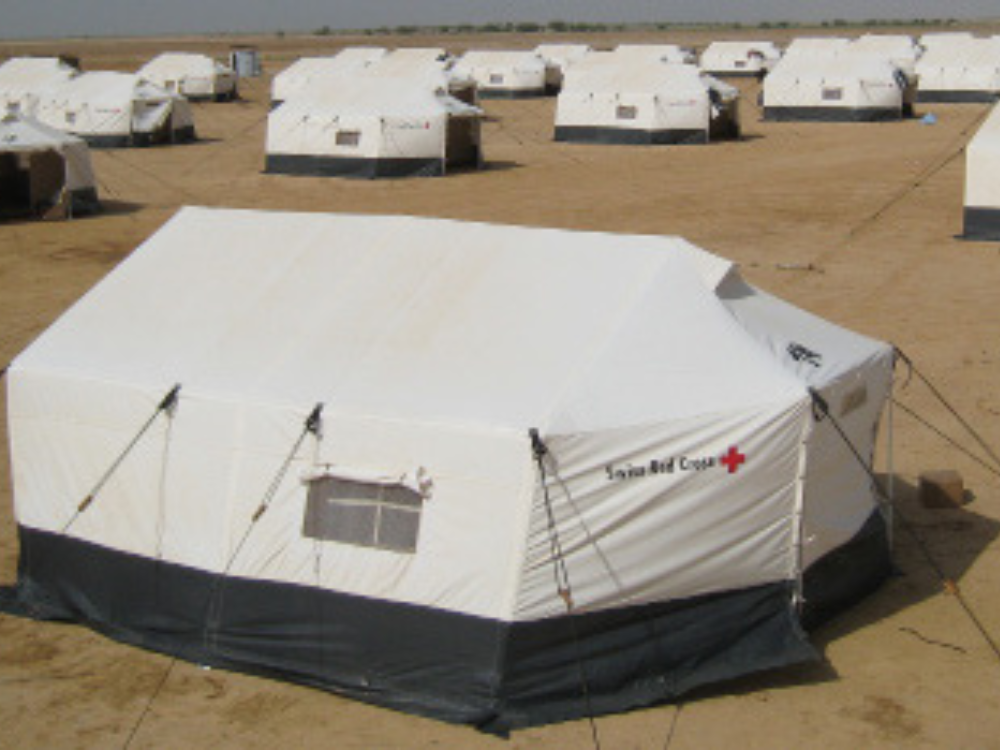

The Family Frame Tent is a 5-person all-weather emergency shelter built for humanitarian organisations, NGOs, and government agencies that need reliable family-scale accommodation in displacement, disaster, and conflict settings. The rigid frame construction creates a stable structure that holds its shape across a wide range of climates — performing in tropical heat, temperate rain, and cold-weather conditions without modification.

The double-fold design packs small relative to its erected footprint, reducing logistics costs and storage space in pre-positioned stockpiles. Units connect end-to-end where larger covered areas are needed for medical screening, registration, or community facilities.

  • Capacity: 5 persons
  • Configuration: All-weather family frame tent, rigid pole system
  • Design: Double-fold, compact packing volume
  • Connectivity: Connectable to adjacent units
  • Treatment: Water-repellent, mildew-resistant; FR available
  • Climate rating: All climates — hot, temperate, cold
  • Usage: Humanitarian relief, disaster response, refugee displacement, NGO procurement

Manufactured by Nizam Tents — the world's largest manufacturer of humanitarian tents, supplying UNHCR, ICRC, IFRC, and governments since 1869. Procurement documentation available on request.

Product type: Family Tents
Get a Quote
Dimensions
LENGTH X WIDTH
OUTER TENT
530 x 415 cm
HEIGHT
Central: 240 cm
Doors: 160 cm
Walls: 150 cm
WEIGHT
79 kg
FLOOR AREA
15 m2
VESTIBULE
3 m2
LENGTH X WIDTH
INNER TENT
395x380cm
CENTRAL HEIGHT
INNER TENT
230 cm
INNER SIDE WALL
HEIGHT
150 cm
Features and specifications
DOORS 2 doors outer tent, 1 front and 1 back
2 doors inner tent, 1 front and 1 back

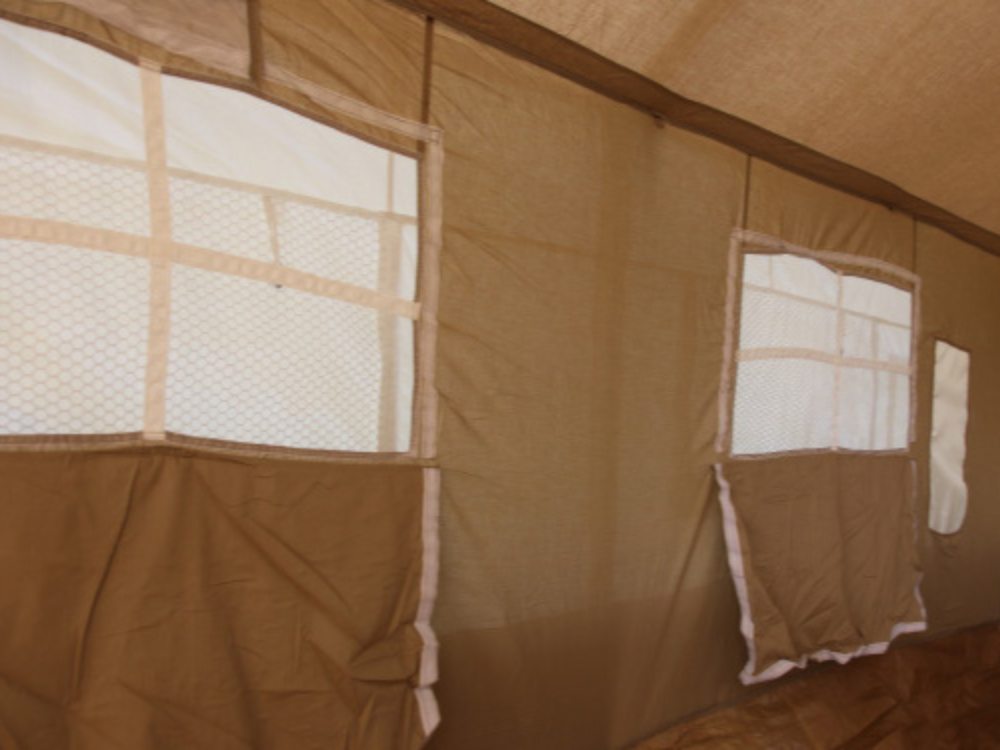

WINDOWS 5 large windows outer tent (80 x 45 cm)
1 small window outer tent
5 large windows inner tent
VENTILATIONS 2 ventilation openings, front and back
CHIMNEY 1 chimney reinforcement in inner and outer tent
Packing
PACKING UNIT (P.U.) PE bag with separated webbing bands + handle
CONTENT P.U. Tent, inner tent with groundsheet, poles, accessories and hammer
QTY P.U. 1 piece
P.U. MEASUREMENTS DIMENSIONS: 220 x 44 x 35 cm
WEIGHT: 56 kg
VOLUME: 0,16 m3
QTY PALLET 8 to 10 pcs
PALLET MEASUREMENTS DIMENSIONS: 230 x 105 x 112,5 cm
Weight: 865 or 952 kg
Volume: 2,717 m3
LOADING PACKED QTY 20 FT DC CTN: 96 pcs palletized PACKED QTY 40 FT DC CTN: 192 pcs palletized PACKED QTY 40 FT HC CTN: 224 pcs palletized
