Family Tent (UNHCR/IFRC Standard)
Family Tent (UNHCR/IFRC Standard)
Family Tent (UNHCR/IFRC Standard)

Family Tent (UNHCR/IFRC Standard)

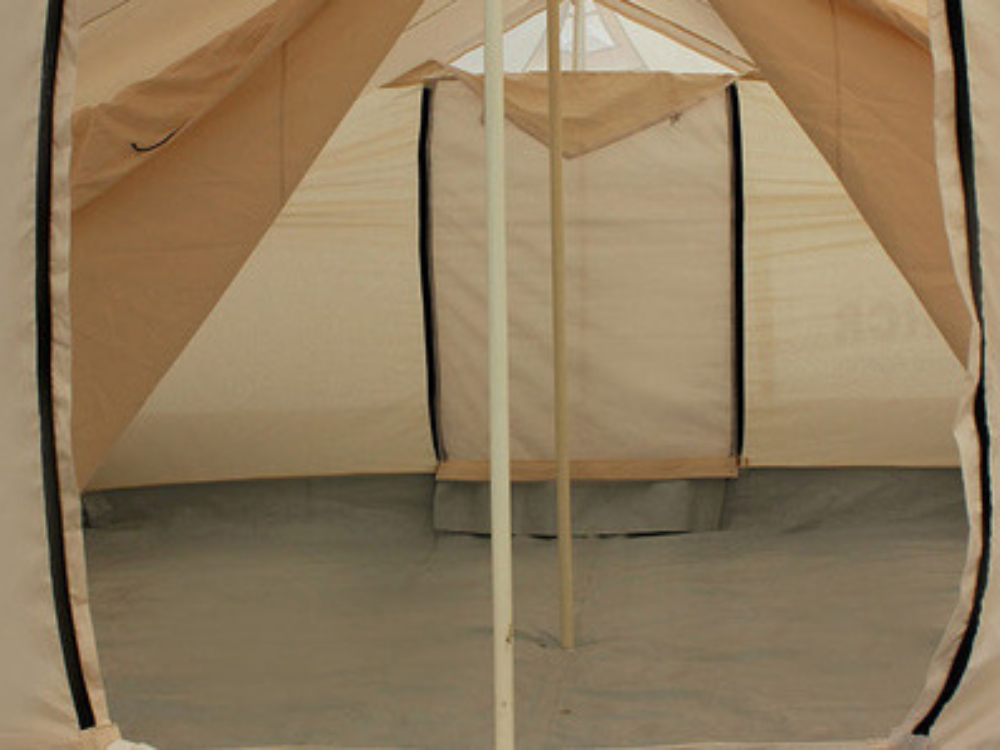

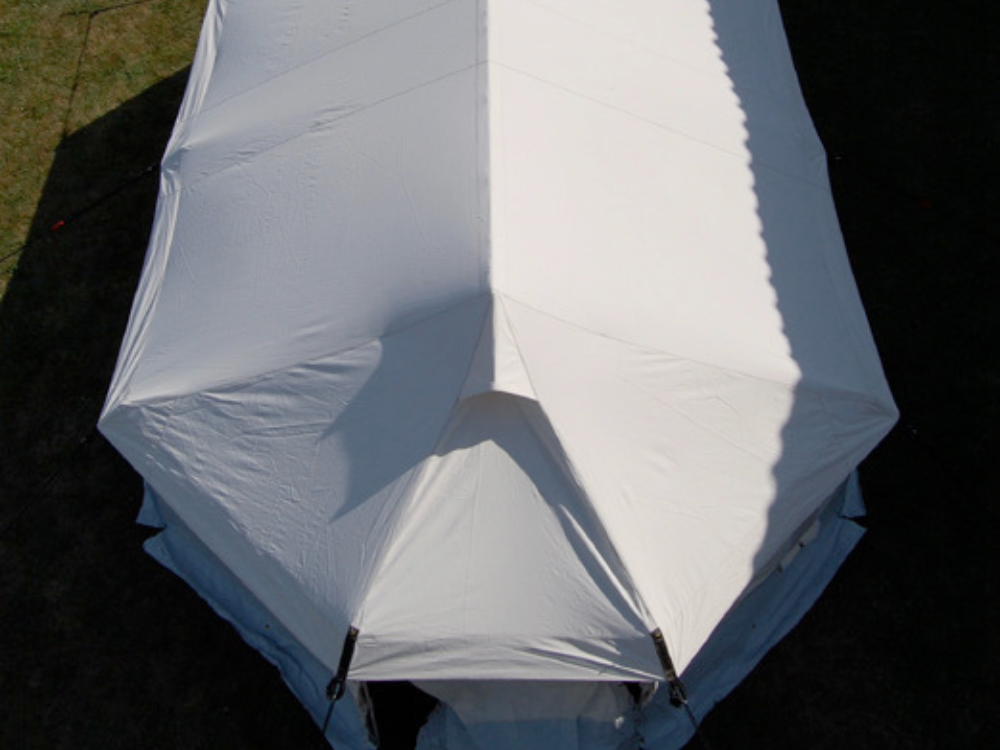

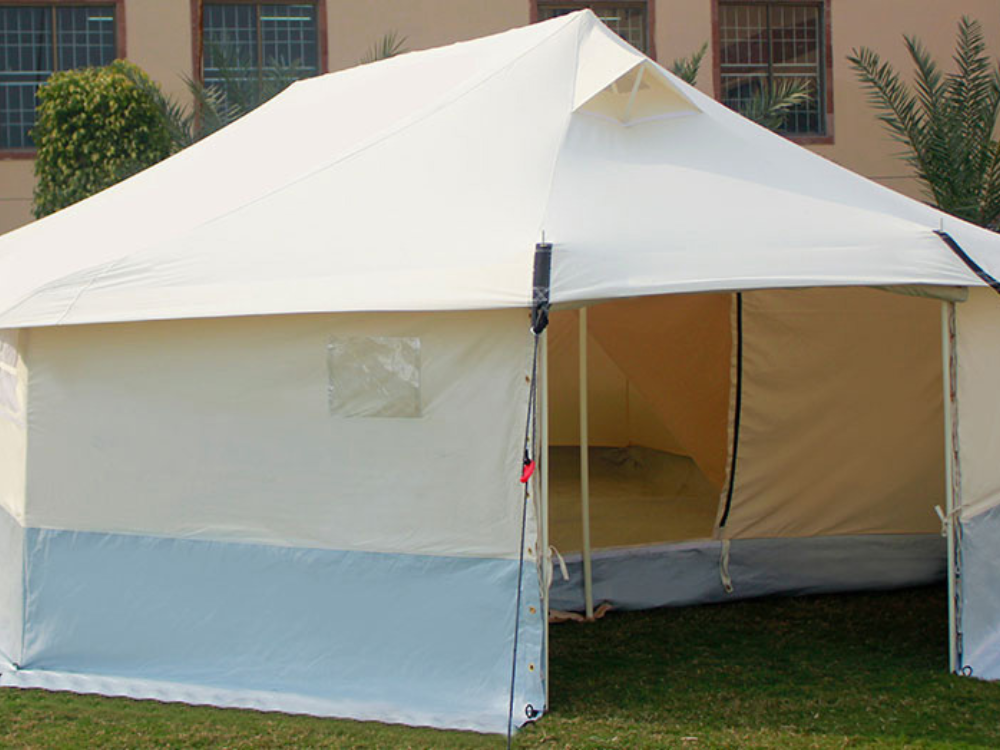

The Family Tent (UNHCR/IFRC Standard) is a 5-person emergency family shelter manufactured to UNHCR and IFRC procurement specifications, following the recommended minimum living area of 3.5 m² per person for hot and temperate climates with additional capacity for cold-climate use. It is the standard family accommodation unit specified across UNHCR, ICRC, and IFRC humanitarian tenders. The double-layer construction pairs a waterproof, rot-proof, UV-treated, and fire-retardant poly-cotton outer tent with a fire-retardant inner tent and sewn-in bathtub HDPE groundsheet. An integrated inner liner improves thermal regulation and reduces condensation, while large doors and full-length windows with mosquito mesh provide optimal ventilation across temperate, tropical, and cold climates. Suitable for refugee camps, displacement settlements, and extended field operations, this is a specification-compliant product supported by full technical documentation for procurement review. Capacity: 5 persons · Standard: UNHCR/IFRC · Total area: 23 m² (6.6 × 4.0 m outer tent) · Outer canvas: 350 GSM poly-cotton · Inner tent: Fire-retardant fabric · Groundsheet: Bathtub HDPE sewn-in · Treatment: Waterproof, rot-proof, UV-treated, fire-retardant · Ventilation: 2 doors, 2 full-length windows with mosquito mesh · Climate rating: All climates (temperate, tropical, cold).
Product type: Family Tents
Get a Quote
Dimensions
LENGTH x WIDTH
5.20 x 4.15 meter
LENGTH x WIDTH
INNER TENT
3.80 x 3.95 meter
CENTER | SIDE WALL HEIGHT
2.20 | 1.25 meter
OUTER CENTER | SIDE WALL HEIGHT
2.40 | 1.50 meter
INNER CENTER | SIDE WALL HEIGHT
2.30 | 1.50 meter
OUTER | INNER SURFACE AREA
22 | 15 m²
CAPACITY
5 people
Features and specifications
DOORS 2 doors (front & rear)
WINDOWS 4 windows with flaps
VENTILATIONS 2 ventilation openings, front and back
CHIMNEY 1 chimney with flap
Packing
PACKING UNIT (P.U.) PE bag with separated webbing bands + handle
CONTENT P.U. Tent, inner tent with groundsheet, poles, accessories and hammer
QTY P.U. 1 piece
P.U. MEASUREMENTS DIMENSIONS: 220 x 44 x 35 cm
WEIGHT: 79 kg
VOLUME: 0.33 m3
QTY PALLET 8 or 10 pcs per metal stackable pallet
PALLET MEASUREMENTS DIMENSIONS: 230 x 105 x 112.5 cm
WEIGHT: 850 kg
VOLUME: 2.717 m3
LOADING PACKED QTY 20 FT DC CTN: 96 pcs
PACKED QTY 40 FT DC CTN: 192 pcs
PACKED QTY 40 FT HC CTN: 224 pcs
