Family Frame Tent (UNHCR Standard)
Family Frame Tent (UNHCR Standard)
Family Frame Tent (UNHCR Standard)

Family Frame Tent (UNHCR Standard)

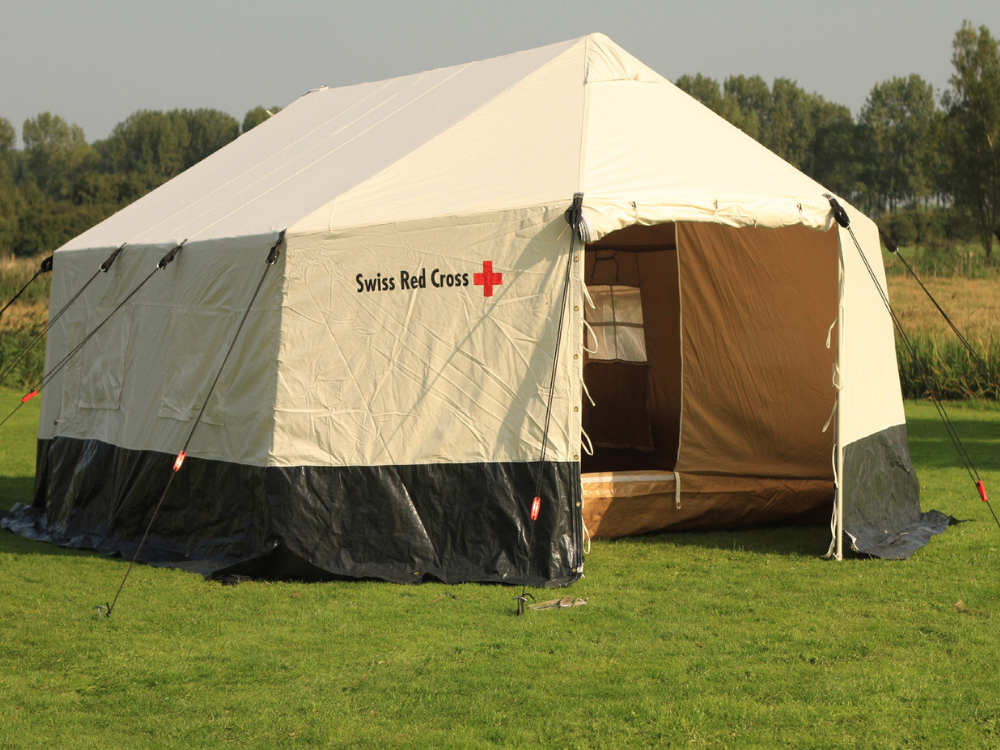

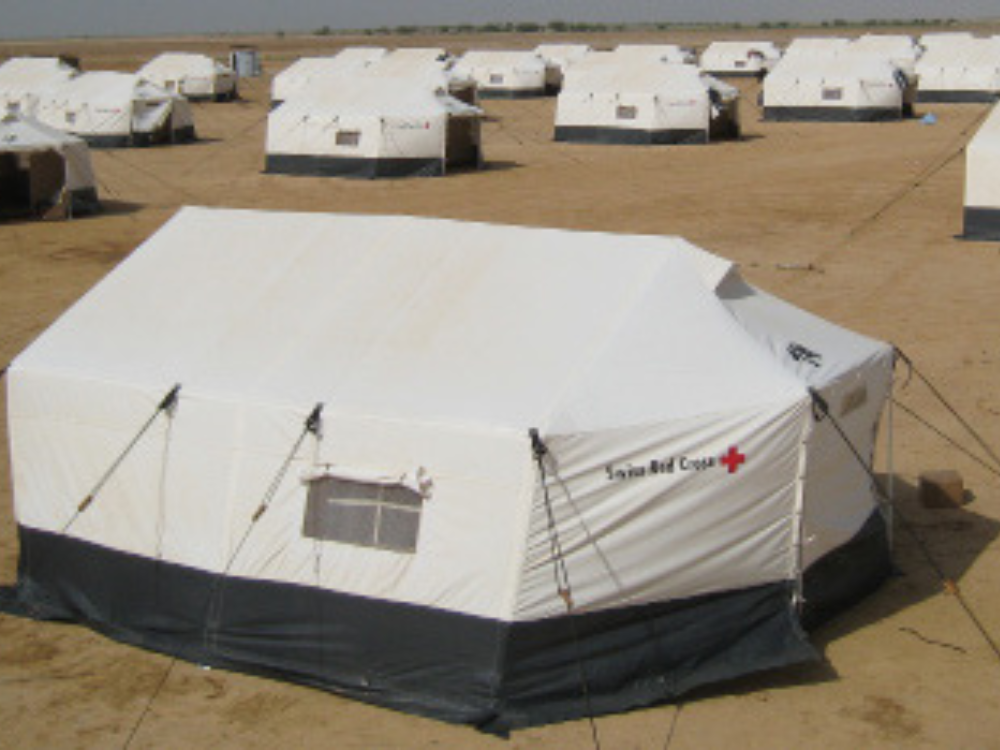

The Family Frame Tent (UNHCR Standard) is a 5-person all-weather family shelter manufactured to the procurement specifications of the United Nations High Commissioner for Refugees. It is the standard emergency accommodation unit for refugee camps and displacement settings, built and verified against the dimensions, material weights, treatment standards, and structural performance requirements defined in UNHCR tenders. Every element — fabric weight, pole gauge, seam strength, fire retardancy, and wind resistance — is verified against UNHCR's published technical requirements. This is not a compatible or equivalent product; it is a specification-compliant tent supplied with full compliance and procurement documentation. The double-fold design reduces logistics volume for efficient container loading, and units connect to one another to form larger structures. Rated for all climates — hot, temperate, and cold — the tent is water-repellent, fire-retardant, and mildew-resistant. Manufactured by Nizam Tents, a long-term UNHCR supplier producing humanitarian tents since 1869, with pre-positioned stock in Belgium, Pakistan, and the UAE for rapid deployment. Capacity: 5 persons · Compliance: UNHCR standard specifications with full technical documentation · Configuration: All-weather family frame tent · Design: Double-fold for reduced logistics volume · Connectivity: Connectable to adjacent units for expanded shelters · Treatment: Water-repellent, FR-treated, mildew-resistant · Climate rating: All climates (hot, temperate, cold) · Deployment: Pre-positioned stock in Belgium, Pakistan, UAE.
Product type: Family Tents
Get a Quote
Dimensions
LENGTH X WIDTH
OUTER TENT
530 x 415 cm
HEIGHT
Central: 240 cm
Doors: 160 cm
Walls: 150 cm
WEIGHT
79 kg
FLOOR AREA
15 m2
VESTIBULE
3 m2
LENGTH X WIDTH
INNER TENT
395x380cm
CENTRAL HEIGHT
INNER TENT
230 cm
INNER SIDE WALL
HEIGHT
150 cm
Features and specifications
DOORS 2 doors outer tent, 1 front and 1 back
2 doors inner tent, 1 front and 1 back

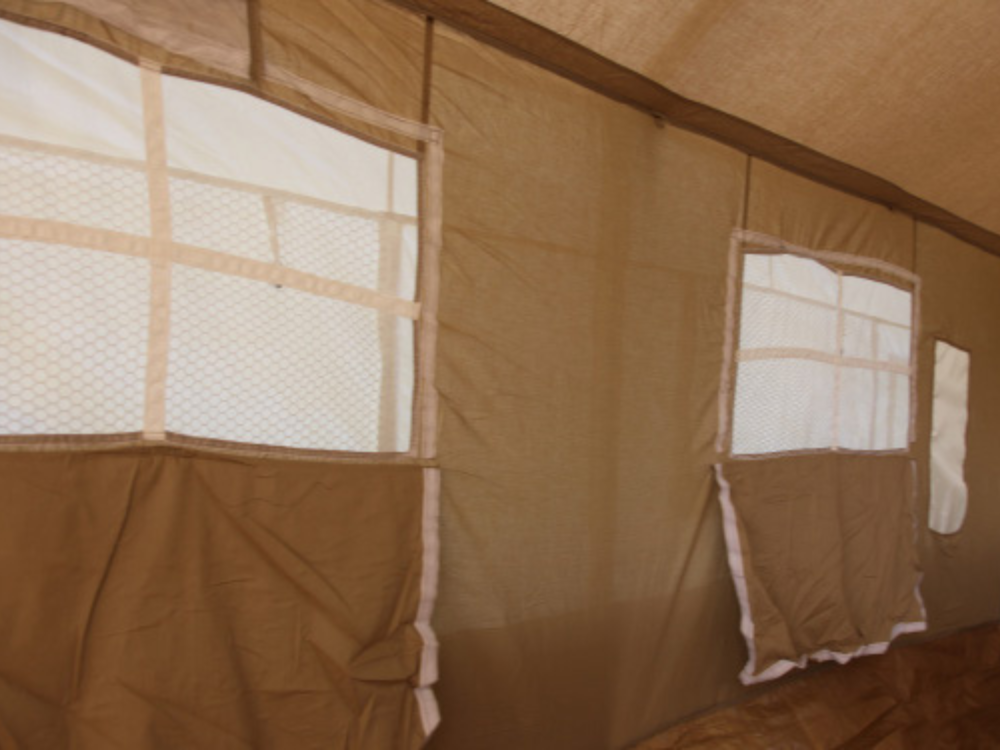

WINDOWS 5 large windows outer tent (80 x 45 cm)
1 small window outer tent
5 large windows inner tent
VENTILATIONS 2 ventilation openings, front and back
CHIMNEY 1 chimney reinforcement in inner and outer tent
Packing
PACKING UNIT (P.U.) PE bag with separated webbing bands + handle
CONTENT P.U. Tent, inner tent with groundsheet, poles, accessories and hammer
QTY P.U. 1 piece
P.U. MEASUREMENTS DIMENSIONS: 220 x 44 x 35 cm
WEIGHT: 56 kg
VOLUME: 0,16 m3
QTY PALLET 8 to 10 pcs
PALLET MEASUREMENTS DIMENSIONS: 230 x 105 x 112,5 cm
Weight: 865 or 952 kg
Volume: 2,717 m3
LOADING PACKED QTY 20 FT DC CTN: 96 pcs palletized PACKED QTY 40 FT DC CTN: 192 pcs palletized PACKED QTY 40 FT HC CTN: 224 pcs palletized
